Auto timer switch off air compressor electric (split)

Compressor Source Automatic Timer Drain

Why you need this TIMER?? YES NO MORE MANUAL

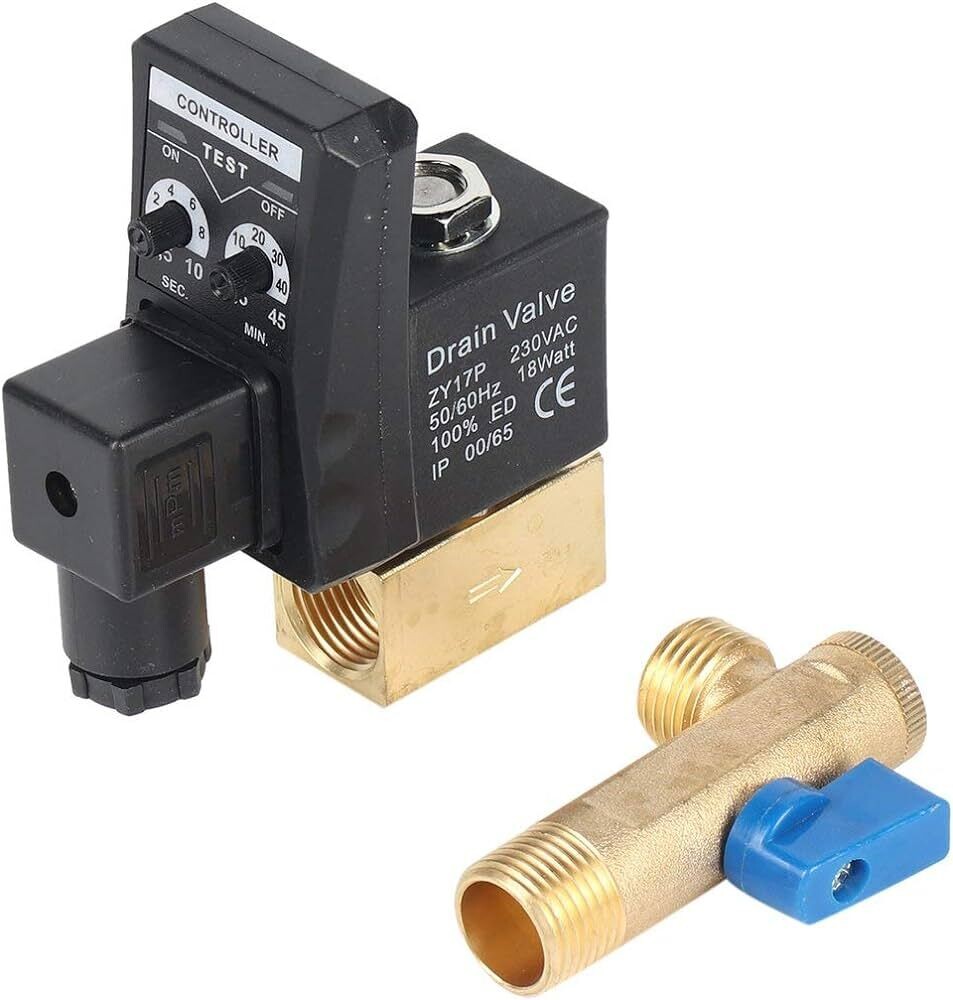

Answer: The electronic auto drain is a great add on feature for any air compressor. This gets fitted to the pressure vessel of your air compressor to allow automatic release of air from the bottom of the tank. When this happens, it also drains excessive moisture build up from the air tank to prevent corrosion.

The timer can be set along with the amount of seconds to have the valve open to drain the tank

Specifications:

• Interval Time: 0.5 - 45 Minutes
• Discharge Time: .05 - 10 Seconds
• Manual Test Switch: Yes
• Current Consumption: Max 4mA
• Operating Temp: -40°F to 122°F
• Environmental Protection: IP65 (NEMA4)
• Case Material: ABS Plastic FR Grade
• Connection: DIN 43650A
• Indicators: Yellow - Open/Closed
• Valve Type: 2/2-Way Direct Acting Valve
• In/Out Ports: 1/2" Male/Female NPT
• Max Working Pressure: 16 Bar
• Media Temp: Max 194°F
• Valve Body: forged Brass
• Insulation: Thermal Group H 180°C
• Supply voltage: 220 Volts
